The Samzon mobile pallet inverter is a battery-powered machine that drives to the pallet, clamps the load and turns it or exchanges the pallet on the spot. The load does not have to be brought to a stationary machine.
The operating principle of pallet inverters and a comparison of machines are on the brand page: Samzon.
What are the specifications of Samzon mobile machines?
| Parameter |
MPT1700-10 |
MPT2000-15 |
MPS2300-12 |
| Type |
mobile pallet turner |
mobile pallet turner |
mobile sidepress |
| Capacity |
1000 kg |
1500 kg |
1200 kg |
| Fork opening |
530–1700 mm |
550–2000 mm |
— |
| Fork length |
1200 mm |
1200 mm |
— |
| Platforms |
— |
— |
1300×800 mm |
| Lifting height |
— |
— |
2300 mm |
| Battery |
24 V, 210 Ah |
24 V, 210 Ah |
24 V, 300 Ah |
| Capacity |
— |
approx. 20 pallets/h |
approx. 30 pallets/h |
How does the MPT mobile pallet inverter work?

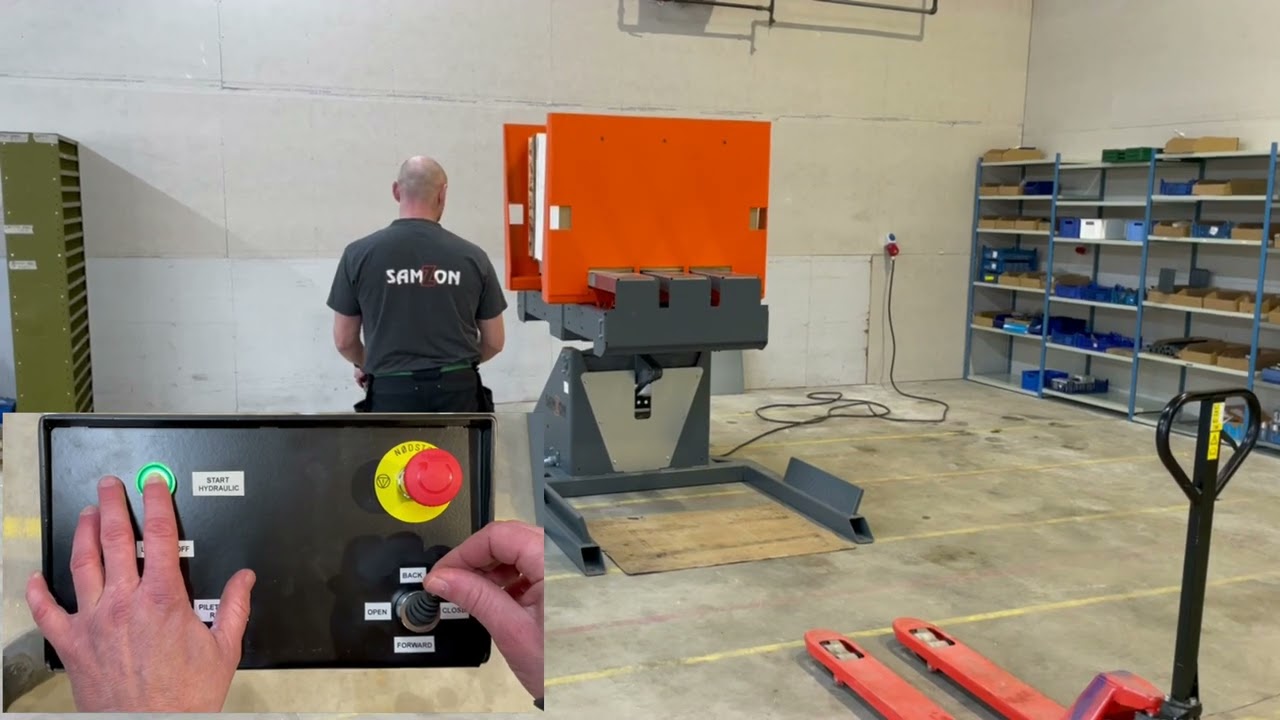

The forks clamp the load, the hydraulics tilt it by 90°, and the machine then rotates the load by 180°. This is how the pallet is exchanged or the load is turned over.
A 2 kW traction motor drives the machine, and the 3 kW hydraulic unit has an integrated pump. The operator controls the forks with buttons on the panel. Servo steering and a built-in battery charger are standard.
How does the MPS sidepress work?
The MPS2300-12 clamps the load between two rubber-padded platforms and lifts it up to 2300 mm. The pallet underneath is removed or replaced. The maximum pallet size is 1200×1200 mm.
When to choose a mobile pallet inverter?
A mobile machine is needed when pallets are changed in several places or there is no room for a stationary station. Operators do not lift pallets by hand.
For high volumes in one place, the manufacturer recommends a stationary pallet inverter.
If the load must not be turned over, the solution is a pallet changer.
What options are available?
- second battery package: a 24 V lead-acid battery with charger and trolley for multi-shift operation;
- adjustable clamp pressure;
- wide base version;
- wireless remote start for MPS;
- spare parts kit and service agreement.
How to select a mobile pallet inverter?
We need the load weight and dimensions, pallet size, number of exchange points, working hours per shift and floor condition. These determine the model and battery configuration.
Steiner Ukraine selects the model and configuration, supplies the equipment and spare parts and carries out installation and service.
Frequently asked questions
What load weight does the Samzon mobile pallet inverter handle?
MPT2000-15 up to 1500 kg, MPT1700-10 up to 1000 kg, MPS2300-12 sidepress up to 1200 kg.
What powers the machine?
A 24 V battery. The charger is built in, and a second battery package is available for multi-shift work.
How many pallets per hour does the machine handle?
MPT2000-15 approx. 20, MPS2300-12 approx. 30.
